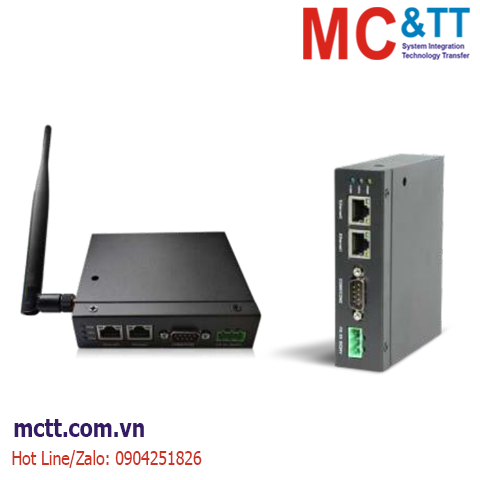

IoT gateway Kinco GW01-4G (ARM RISC 32Bit, 2 COM, 2 Ethernet, tích hợp 4G)

Chia sẻ:
Mã sản phẩm: GW01-4G
Thương hiệu: Kinco
Tình trạng: Còn hàng

Green IoT gateway

Liên hệ
Mô tả

IoT gateway Kinco GW01-4G (ARM RISC 32Bit, 2 COM, 2 Ethernet, tích hợp 4G)

Tính năng

  • Freescale industrial-grade CPU, 800MHz processor, 128MB memory
  • Dual-port ethernet + COM, can connect hundreds of mainstream controllers, no need to change the existing architecture
  • Easy configuration, easy to achieve data mapping, the device data transfer to the cloud
  • Free choice of wireless or 4G, suitable for different demand
  • Small size, easy to install (DIN rail installation)

Thông số kỹ thuật

Model

GW01

GW01-4G GW01-WiFi

 Performance specification

 CPU

 ARM RISC 32Bit 800MHz

 Storage

 128MB NAND Flash Memory + 128MB DDR3 Memory

 RTC

 Built-in real time clock

Ethernet

2* 10/100M self-adaption

 Printer port

 USB Host/ Serial port

WiFi

 None

None

2.4GHz WiFi
4G None Built-in None

 Program download

USB Slave (Micro USB)/ Ethernet

USB Slave (Micro USB)/ Ethernet USB Slave (Micro USB)/ Ethernet/ WiFi
Cellular and Wireless None

LTE-FDD Band 1/3/5/8

LTE-TDD Band 38/39/40/41

UMTS Band 1/8 GSM Band 3/8

IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
VPN Support box remote upload and download and online monitoring, support PLC passthrough program upload and download and online debugging

 COM port

COM0:RS232/RS485/RS422, COM2:RS232

Electrical specification

Input power supply

DC10V~DC28V, Built-in isolation power supply

Rated power

1.5W
Allowable loss of power

 <3ms

Insulation resistance

Over 50MΩ@500V DC

Hi-pot test

500 VAC 1 minute

 Structure specification

PCB None of spraying

 Shell color

 Black

Shell material

 Metallic

Shape size

 111.6*93.6*30 mm

 Installation

DIN-rail mounting (35mm)
Weight 0.31Kg

 Environment specification

Operating temperature

 -10~50℃

 Operating humidity

 10~90% non-condensing

 Storage temperature

 -20~60℃

 Storage humidity

 10~90% non-condensing

 Shockproof test

 10~500Hz, 30m/s², X, Y, Z direction/hour

 Cooling method

 Natural air cooling

 Certification

Panel protection grade

Conforming to IP20

CE certification

CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005

Software

Configuration software

Kinco DTools V3.4 and above

Thông tin đặt hàng

Tài liệu

Datasheet

User Manual

Software

Kinco DTools V4.1.0.3(Build230705)
